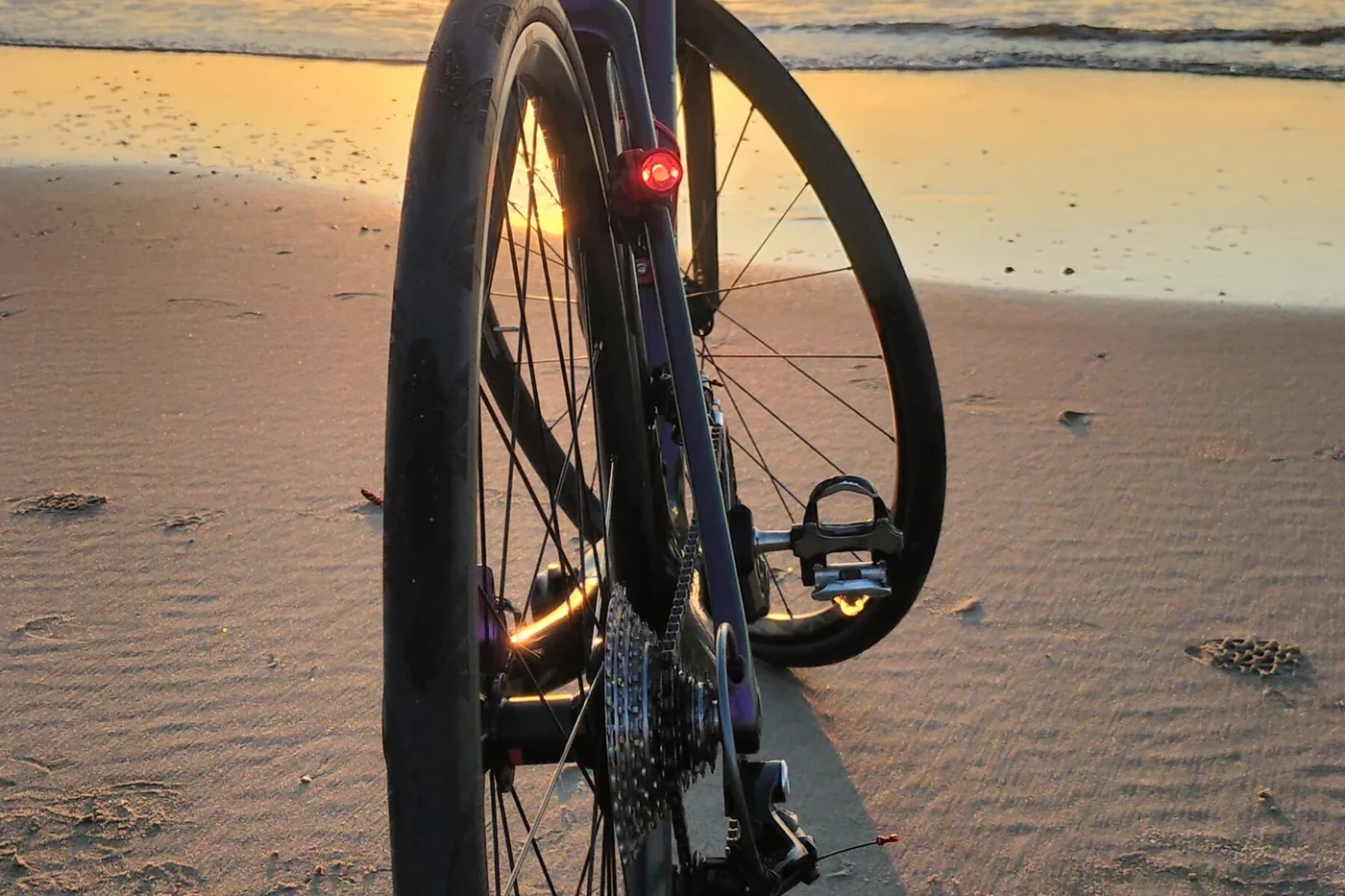

Magnic Microlights Disc – Quattro Set
Contactless, battery-free bicycle lighting for aluminium rims. The integrated dynamo works contactlessly by eddy-current induction on any aluminium rim – with no magnets on the wheel.
For disc-brake bicycles: compact mounting directly on the fork with a flexible strap mount.
Please select orientation and colour above.
Scope of delivery: 2 front lights + 2 rear lights, 4 Disc mounts with flexible straps, protective stickers and installation tools.
Which Magnic Light fits my bike?
For Microlights Disc, the distance from the outer edge of the fork to the rim must be below 65 mm. For wide forks, suspension forks or very wide tyres, Wega is the more universal solution.
Contactless Energy Transfer
No battery
IPX6
StVZO approval
Anti-theft protection
Tools included
StandlightOne light – several bikes
Already own Microlights? The lights can be moved between compatible brake shoes and Disc mounts. Additional brake shoes and Disc mounts are available separately – so you do not need a complete lighting system for every bike.
Use & Details
Installation & operation
Microlights Disc installation video
Installation guide
Technical specifications
| Mounting | Flexible strap mount directly on the fork |
|---|---|
| Microlights Disc | For Microlights Disc, the distance from the outer edge of the fork to the rim must be below 65 mm. For wide forks, suspension forks or very wide tyres, Wega is the more universal solution. |
| Contactless Energy Transfer (CET) | Contactless, battery-free bicycle lighting for aluminium rims. The integrated dynamo works contactlessly by eddy-current induction on any aluminium rim – with no magnets on the wheel. |
| Generator | ca. 0,1–0,5 W / 2–5 V AC |
| IPX6 | IPX6 |
| Standlight | Front: no standlight; rear: approx. 4–10 minutes |
Why Microlights Disc?
The compact Disc mount brings the proven Microlights system to disc-brake bicycles. Generator and light remain a compact unit positioned directly next to the rim.
Will Microlights Disc fit my bike?
For Microlights Disc, the distance from the outer edge of the fork to the rim must be below 65 mm. For wide forks, suspension forks or very wide tyres, Wega is the more universal solution.
Frequently asked questions
Do I need magnets on the wheel?
No. Energy is transferred contactlessly by eddy-current induction in the aluminium rim.
Can I reuse Microlights I already own?
Yes. The lights can be moved between compatible Microlights brake shoes and Disc mounts.
When is Wega the better choice?
For wide forks, suspension forks, or when the distance from the outer edge of the fork to the rim is 65 mm or more.
